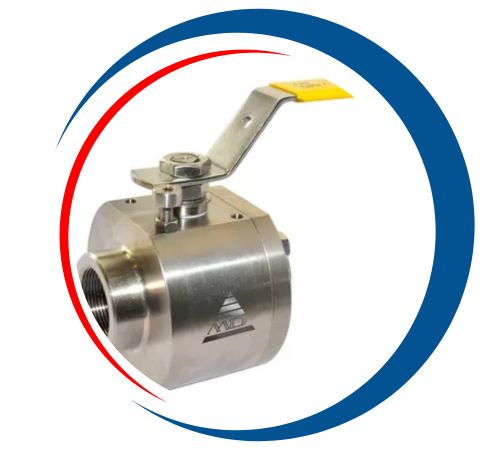

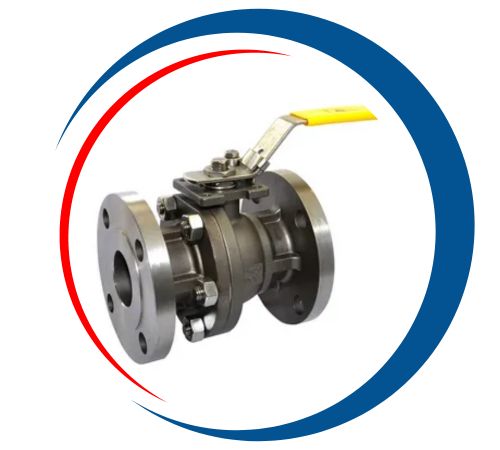

904l Ball Valve

Home > 904l Ball Valve

Iyle Tube Fittings, based in South Africa, stands out as a top manufacturer and supplier of high-quality 904L Ball Valves, designed to perform exceptionally in tough and corrosive industrial settings. With a reputation for precision engineering, durability, and a commitment to international quality standards, the company offers valves that ensure leak-proof operation, smooth flow control, and a long service life. Iyle Tube Fittings’ 904L Ball Valves are widely utilized in the chemical, petrochemical, oil and gas, pharmaceutical, power generation, and marine sectors, providing safe, efficient, and reliable solutions for fluid control where resistance to highly corrosive substances is essential.

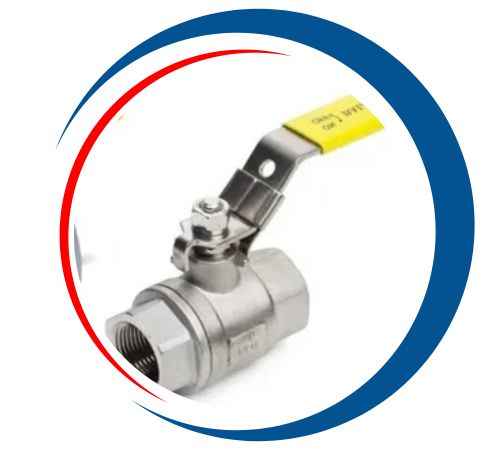

904l Ball Valve Manufacturer In South Africa, SS 904l Ball Valve In Johannesburg, AISI 904L Ball Valve Durban, UNS N08904 Ball Valve In Germiston. 1.4539 AISI 904L Ball Valve In Jebel Ail, Stainless Steel 904L Ball Valve Supplier In South Africa, Cape Town.

The 904L Ball Valve is crafted from a high-nickel, low-carbon austenitic stainless steel alloy, which gives it outstanding resistance to strong acids, chlorides, and other harsh chemicals. It boasts excellent tensile and yield strength, good ductility, and superior hardness, making it perfect for demanding industrial conditions. The precision-engineered ball and seats guarantee smooth rotation, precise flow control, and leak-tight sealing. This valve maintains its mechanical integrity and dimensional stability even under varying temperatures and pressures, making it an ideal choice for high-performance applications in chemically aggressive and high-pressure environments.

904l Ball Valve Specifications

STANDARD	API 600/BS1414, API 598/BS EN 12266-1, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
BRAND NAME	TU-LOK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, PARKER, DK-LOK, HAMLET, OLIVER VALVES, HOKE
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Mechanical Properties Of AISI 904L Ball Valve

Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness Rockwell B (HR B)	Hardness Brinell (HB)
490	220	36	70-90 typical	150

Chemical Composition Standard Of 904L UNS N08904 Ball Valve

C	Mn	Si	P	S	Cr	Mo	Ni	Cu
0.02 Max	2.0 Max	1.0 Max	0.045 Max	0.035 Max	19.0 Min 23.0 Max	4.0 Min 5.0 Max	23.0 Min 28.0 Max	1.0 Min 2.0 Max

Top 904l Ball Valve Manufacturing Company in South Africa

At Iyle Tube Fittings, we are a leading supplier, manufacturer, and exporter of 904l Ball Valve in South Africa, Cape Town. Our state-of-the-art manufacturing facilities, strategically located in the Cape Town, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.

Types of 904l Ball Valve

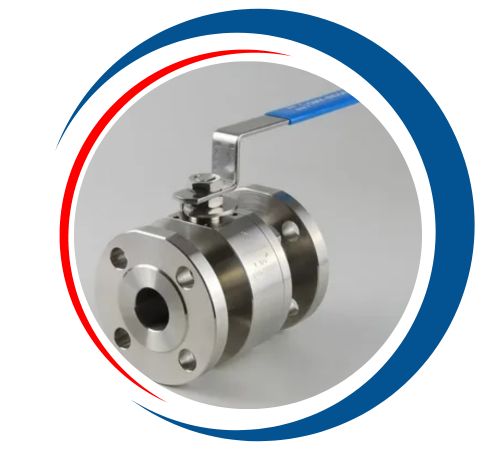

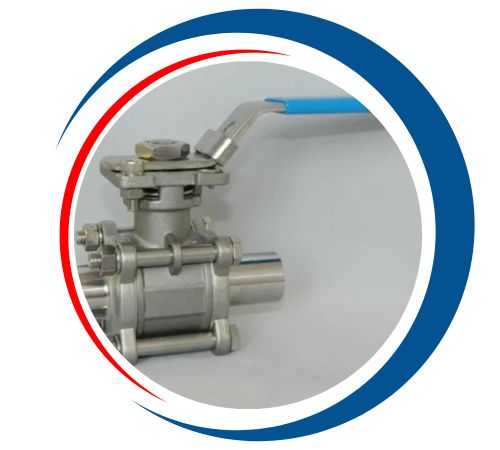

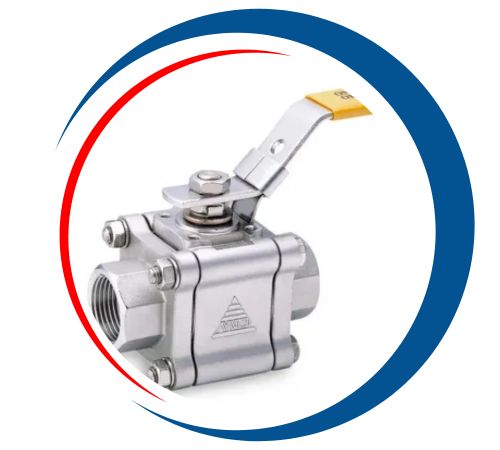

904l High Pressure Ball Valve Manufacturer In South Africa, 904l Instruemntation Ball Valve In Johannesburg, 904l Panel Mounted Ball Valve Durban, AISI 904L Ball Valve Germiston. 904L UNS N08904 Ball Valve Jebel Ail, 1.4539 AISI 904L Ball Valve Supplier In South Africa, Cape Town.

Largest Manufacturer and Supplier of 904l Ball Valve in South Africa, Cape Town

Iyle Tube Fittings is a leading supplier and stockist of premium 904l Ball Valve in South Africa, Cape Town. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

904l Ball Valve Uses

You’ll find the 904L Ball Valve extensively used in industries that need reliable corrosion-resistant fluid control. In chemical and petrochemical plants, it’s employed to manage sulfuric acid, hydrochloric acid, and other aggressive substances. Oil and gas facilities rely on it for refining and processing systems that face corrosive conditions. Pharmaceutical plants trust it for safe and hygienic fluid handling. Power generation facilities use it in cooling and chemical distribution lines. Moreover, marine, desalination, and various industrial process sectors utilize 904L Ball Valves to ensure leak-proof operation.
