Inconel BSP / NPT Fittings

Home > Inconel > Inconel BSP / NPT Fittings

Iyle Tube Fittings stands out as a top manufacturer and supplier in South Africa, focusing on high-quality Inconel BSP (British Standard Pipe) and NPT (National Pipe Thread) fittings. Known for their precision engineering and remarkable durability, these fittings are built to endure harsh environments and corrosive conditions. Iyle Tube Fittings merges cutting-edge manufacturing techniques with strict quality standards to provide dependable, high-performance solutions for various industrial applications. They cater to industries like petrochemical, power generation, and marine engineering, ensuring that every Inconel BSP and NPT fitting complies with international standards, delivering unmatched strength, resistance, and longevity.

ASME SB564 Incoloy Alloy 800 BSP Screwed Plug Manufacturer South Africa, Incoloy 800 NPT Screwed Cross Dealer Johannesburg, Incoloy 825 MSS SP-83 NPT Thread Plugs Manufacturer Supplier Durban, 625 Inconel Alloy BSP Thread Cross Exporter In Germiston, Incoloy Alloy 800HT BSP Equal Crosses Manufacturer Gqeberha, Alloy 718 BSP / NPT Cross In South Africa, Cape Town.

Crafted from Inconel alloys, primarily nickel-chromium-based, Inconel BSP and NPT fittings boast outstanding resistance to oxidation and corrosion. The typical material composition includes at least 72% nickel, 14–17% chromium, and 6–10% iron, along with small amounts of manganese, silicon, and carbon. These fittings showcase high tensile strength, excellent fatigue resistance, and stability at elevated temperatures, often surpassing 1000°F (540°C). Their mechanical properties feature yield strength between 30–45 ksi, ultimate tensile strength of 75–100 ksi, and superior creep and stress-rupture resistance, making them perfect for demanding industrial settings.

Inconel BSP / NPT Fittings Specifications

Specifications: ASTM B564/ ASME SB564
Size: 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Dimensions : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Types : Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating: Threaded End-2000lb/ 3000lb/ 6000lbs /
Socket-weld End-3000/ 6000/ 9000lbs
Thread: NPT, BSPT, BSPP

Inconel BSP / NPT Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel BSP / NTP	0.15 max	1.00 max	0.50 max	0.015max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00

Inconel BSP / NPT Fittings Mechanical Properties

Element	Density	Melting Point	Tensilee Strength	Yield Strength (0.2%Offset)	Elongation
Inconel BSP / NTP	8.47 g/cm3	1413 °C (2580 °F)	Psi – 95,000 , MPa – 655	Psi – 45,000 , MPa – 310	40 %

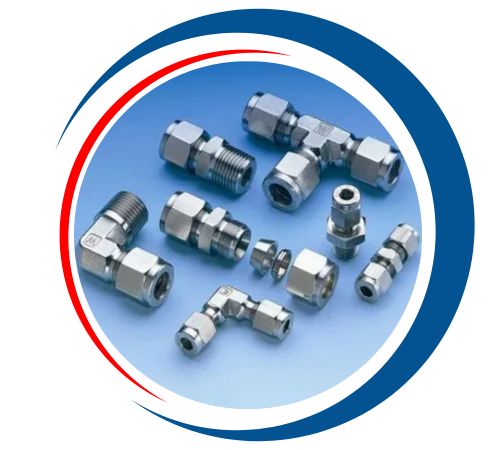

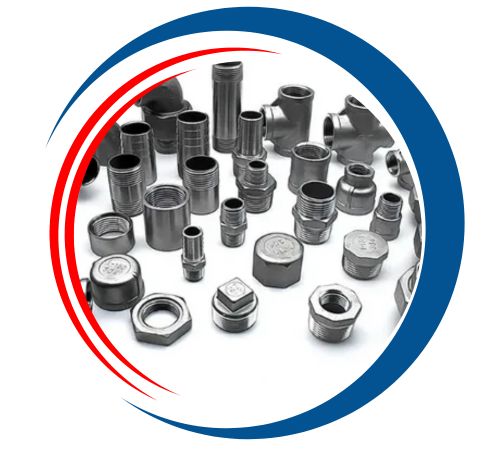

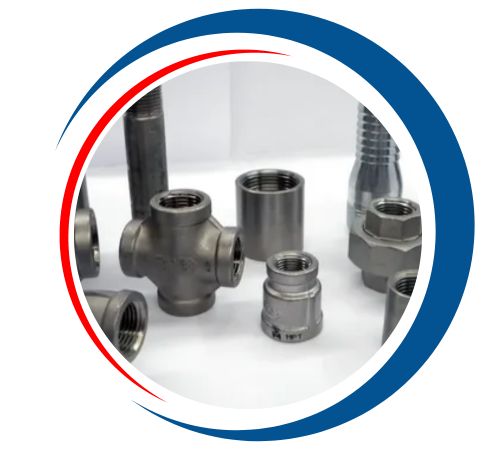

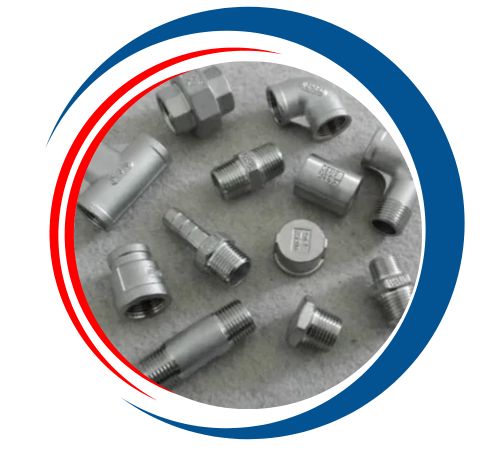

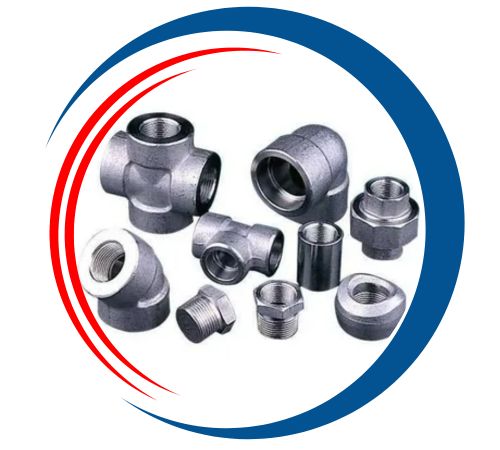

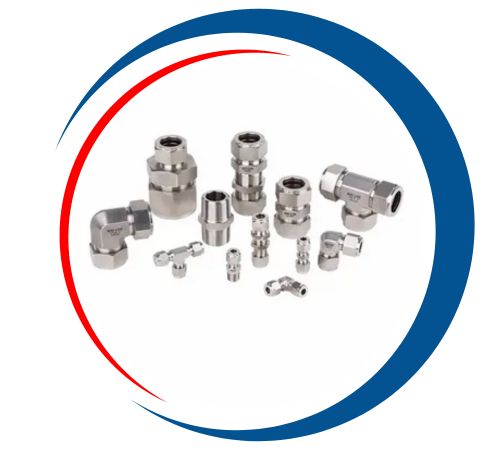

Types of Inconel BSP / NPT Fittings

Equivalent Grades of Inconel BSP / NPT Fittings

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 600	2.4816	N06600	NCF 600	NA 13	МНЖМц 28-2,5-1,5	NC15FE11M	NiCr15Fe
Inconel 625	2.4856	N06625	NCF 625	NA 21	ХН75МБТЮ	NC22DNB4M	NiCr22Mo9Nb
Inconel 718	2.4668	N07718	–	–	–	–	–
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo

Alloy 600 BSP Threaded Plug Price in South Africa, ANSI B16.11 Inconel 825 BSP Hex Head Plug Manufacturer Supplier in Johannesburg, ANSI B16.11 Inconel 600 NPT x BSP Cross Manufacturer in Durban, ASTM B564 Incoloy Alloy 800 NPT Pressure Plugs Fittings Price in Germiston, 800HT Incoloy NPT Threaded Union Supplier And Manufacturer in Gqeberha, 800 Incoloy Alloy MSS SP-83 NPT Thread Union In South Africa, Cape Town.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Inconel BSP / NPT Fittings in South Africa, Cape Town

At Iyle Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Inconel BSP / NPT Fittings in South Africa, Cape Town. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Cape Town, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Inconel BSP / NPT Fittings Uses

Iyle Tube Fittings’ Inconel BSP and NPT fittings are widely utilized in industries that require high corrosion resistance and durability. They play a crucial role in chemical processing, oil and gas, petrochemical, marine, and power generation sectors, where extreme temperatures, high pressure, and aggressive fluids are the norm. These fittings are ideal for piping systems, valves, instrumentation, and hydraulic connections, ensuring leak-proof performance and a long service life. Their resistance to scaling, pitting, and oxidation makes them essential for critical applications, providing reliability and safety.
