Monel Tube Fittings

Home > Monel > Monel Tube Fittings

Iyle Tube Fittings, located in South Africa, is a reputable manufacturer and supplier of **Monel Tube Fittings**. These fittings are crafted for outstanding corrosion resistance and dependable performance, especially in tough industrial and marine settings. They ensure secure, leak-proof connections for piping and instrumentation systems, which is crucial for long-lasting durability and operational safety. Made from top-notch Monel alloy, these fittings excel in resisting seawater, acids, and environments rich in chlorides. Iyle Tube Fittings prides itself on delivering precision-engineered, quality-assured products, backed by rigorous quality control, to sectors like chemical processing, petrochemicals, oil and gas, marine, and power generation.

Monel Tube Fittings Price in South Africa, Monel Instrumentation Fittings Supplier in Johannesburg, Monel Alloy Double Ferrule Fittings Manufacturer in Durban, Monel Alloy Branch Tees Price in Germiston, Monel Female Elbow Dealer in Johannesburg, Monel Hydraulic Tube Fittings Supplier in Gqeberha, Monel Blanking Plug Supplier And Manufacturer in Gqeberha, Monel Union Tee In South Africa, Cape Town.

Monel Tube Fittings mainly consist of nickel (at least 63%) and copper (28–34%), giving them exceptional resistance to corrosion in challenging chemical and marine conditions. They boast impressive tensile strength, yield strength, and remarkable toughness and ductility. Their sturdy design guarantees reliable performance even under high pressure, high temperature, and aggressive environments, making them perfect for critical piping and instrumentation tasks.

Monel Tube Fittings Specifications

Monel Tube Fittings specification (ASTM / ASME)	ASTM B366/ ASME SB366
Working Pressure	Up to 6,000psi (based on severity of application)
Two-Ferrule Tube Fittings	Pressure Ratings : Up to 11 000 psig (760 bar)
Medium-Pressure, Gaugeable	Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C)
High-Pressure Monel Tube Fittings	Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Monel 400 Tube fittings
Monel Tube Fittings Special sizes	22mm Monel tube fittings 25mm Monel 400 tube fittings 32mm Monel K500 tube fittings 50mm Monel Ferrule tube fittings
End Connections	Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Types	Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs
Monel Ferrule Tube Fittings Sizes	1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm
Specification	Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564
Brand Name	Monel Tube fittings
Tube Size	1/16”OD to 2”OD, 2mm OD to 50mm OD
Threads	NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc.
PTFE Standards	ASTM D1710, ASTM D3294
Applicable Temperature	150-400°C
Monel Tube Fittings Packing Details	As your detail request Normally carton size – 211614CM/312116CM/364550CM Normally wooden box size – 382717CM Normally 1piece/opp, 10-20pcs/carton

Equivalent Grades of Monel Tube Fittings

STANDARD	AFNOR	UNS	BS	WERKSTOFF NR.	GOST	JIS	EN
Monel K500	–	N05500	–	2.4375	–	–	–
Monel 400	NU-30M	N04400	NA 13	2.4360	МНЖМц 28-2,5-1,5	NW 4400	NiCu30Fe

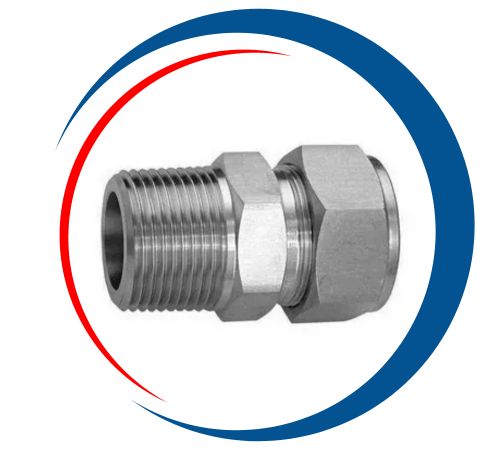

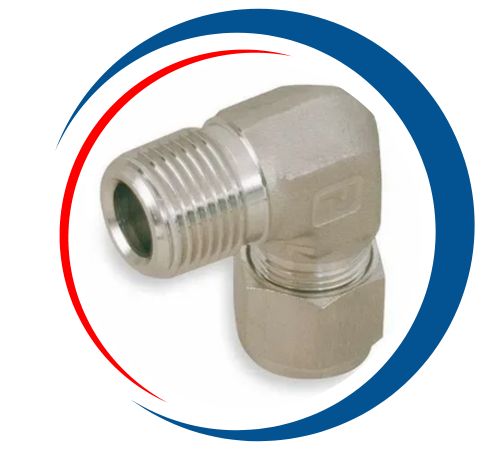

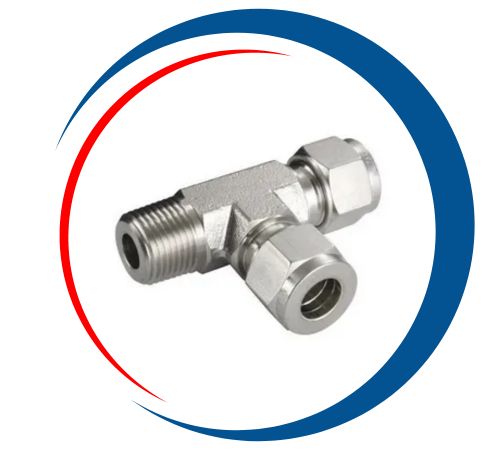

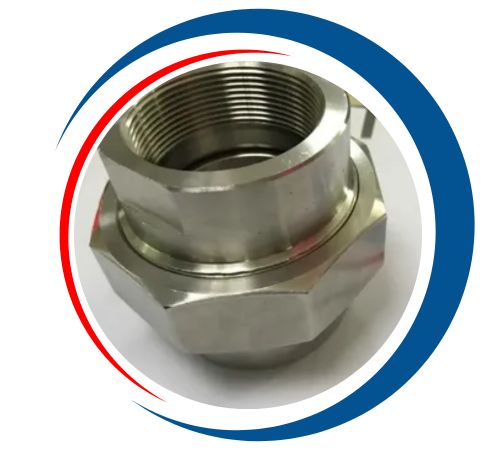

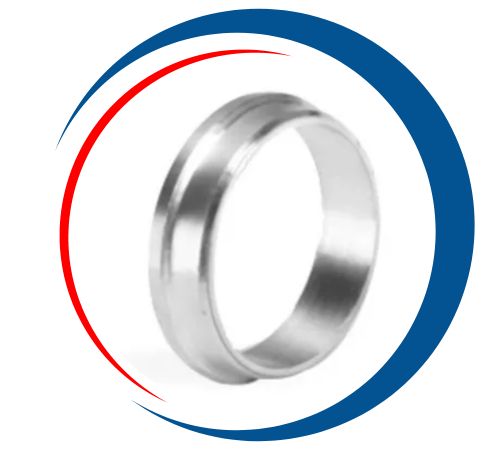

Types of Monel Tube Fittings

Dimension of Monel Tube Fittings

OD	OD Actual	Thread Designation – Nominal Size	Thread per inch
(fraction inch)	(inches)	(inches)	NPT	BSP
5/16	0.3125	1/16	27	28
13/32	0.405	1/8	27	28
35/64	0.540	1/4	18	19
43/64	0.675	3/8	18	19
27/32	0.840	1/2	14	14
1-3/64	1.050	3/4	14	14
1-5/16	1.315	1	11-1/2	11
1-21/32	1.660	1-1/4	11-1/2	11
1-29/32	1.900	1-1/2	11-1/2	11
2-3/8	2.375	2	8	11
2-7/8	2.875	2-1/2	8	11
3-1/2	3.5	3	8	11
4	4.0	3-1/2	8	11
4-1/2	4.5	4	8	11
5-5/8	5.563	5	8	11
6-5/8	6.718	6	8	11

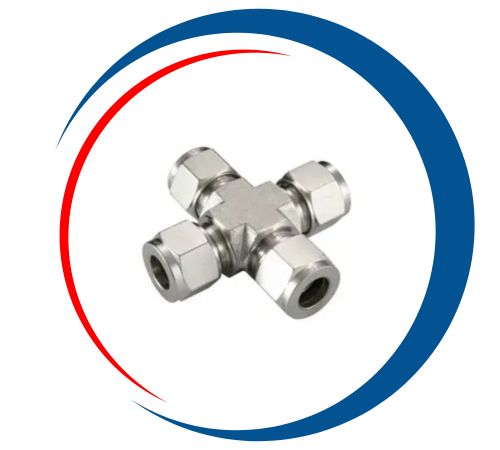

Monel Male Bulkhead Connector Manufacturer in South Africa, Monel Hydraulic Fittings Exporter in Johannesburg, Monel Single Ferrule Compression Fittings Supplier in Durban, Monel Flared Tube Fittings Supplier in Germiston, Monel Union Cross In Durban, Monel Instrumentation Fittings In Germiston, Monel Bulkhead Union Price List in Gqeberha, Monel Ferrule Tube Fittings Manufacturer in South Africa, Monel Alloy Compression Tube Fittings Exporter in Johannesburg, Cape Town.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Tube Fittings in South Africa, Cape Town

These fittings are widely utilized in industries that demand durability, corrosion resistance, and consistent operation. In marine and offshore settings, they find applications in seawater piping, desalination units, and underwater systems. The oil and gas sector employs them in pipelines, valves, and instrumentation lines that come into contact with corrosive substances. They are also vital in chemical and petrochemical plants, as well as power generation facilities. Their unique blend of strength, corrosion resistance, and reliability ensures safe and efficient functioning in essential industrial processes.

Monel Tube Fittings Uses

Monel tube fittings are widely used in various industries due to their exceptional corrosion resistance and high strength. Common applications include marine environments, chemical processing, and oil and gas industries, where they are essential for transporting aggressive fluids. Their durability makes them ideal for high-temperature applications and extreme environments. Monel fittings are also used in heat exchangers, valves, and piping systems, ensuring reliability and longevity. Additionally, their resistance to pitting and stress corrosion cracking enhances their performance in harsh conditions, making them a preferred choice for critical applications.
