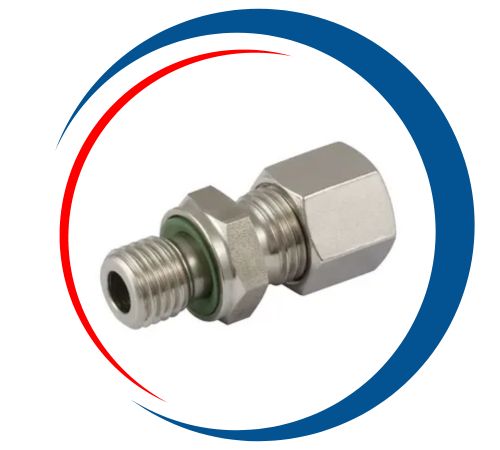

Iyle Tube Fittings, located in South Africa, is a reliable manufacturer and supplier of **Hydraulic Female Stud Couplings**. These couplings are crafted for high-strength, leak-proof, and dependable connections in hydraulic and fluid transfer systems. They ensure a secure fit for male studs to hydraulic lines, promoting efficient flow and maintaining system integrity even under high pressure. Constructed from top-notch materials like carbon steel, stainless steel, or alloy steel, they boast impressive corrosion resistance, mechanical strength, and durability. Iyle Tube Fittings is committed to delivering precision-engineered, quality-assured products to various industries, including oil and gas, petrochemicals, chemical processing, power generation, and marine applications.
Hydraulic Female Stud Couplings are made from high-strength alloys such as carbon steel, stainless steel (304/316), or specialized metals, offering outstanding tensile and yield strength, toughness, and ductility. They are designed to endure high-pressure situations, temperature changes, and mechanical stress, ensuring reliable and long-lasting performance in hydraulic systems. Their sturdy design makes them perfect for critical fluid transfer and control applications.
| STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 |
| SERIES | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| CONNECTIONS | TUBE TO FEMALE THREAD, WELD NIPPLE TO FEMALE THREAD |
| BODY TYPE | BAR STOCK |
| SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| APPLICATIONS & INDUSTRIES | CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT |
| MATERIAL DESIGNATOR | STAINLESS STEEL – ASTM A 276 , ASTM 182 |
| STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A. | |
| BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771. |
At Iyle Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Male Stud Coupling in South Africa, Cape Town. Our advanced manufacturing facilities, strategically positioned in the Cape Town, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.
| Tube O/D (mm) | Series | BSPP Female Thread | Pressure bar |
|---|---|---|---|
| 6 | L | G 1/8 | PN 315 |
| 6 | L | G 1/4 | PN 315 |
| 6 | L | G 3/8 | PN 315 |
| 8 | L | G 1/4 | PN 315 |
| 8 | L | G 3/8 | PN 315 |
| 8 | L | G 1/2 | PN 315 |
| 10 | L | G 1/4 | PN 315 |
| 10 | L | G 3/8 | PN 315 |
| 10 | L | G 1/2 | PN 315 |
| 12 | L | G 1/4 | PN 315 |
| 12 | L | G 3/8 | PN 315 |
| 12 | L | G 1/2 | PN 315 |
| 15 | L | G 3/8 | PN 315 |
| 15 | L | G 1/2 | PN 315 |
| 18 | L | G 1/2 | PN 315 |
| 22 | L | G 3/4 | PN 160 |
| 28 | L | G 1 | PN 160 |
| 35 | L | G 1 1/4 | PN 160 |
| 42 | L | G 1 1/2 | PN 160 |
| 6 | S | G 1/4 | PB 630 |
| 8 | S | G 1/4 | PB 630 |
| 10 | S | G 3/8 | PB 630 |
| 12 | S | G 3/8 | PB 630 |
| 12 | S | G 1/2 | PB 630 |
| 14 | S | G 1/2 | PB 630 |
| 16 | S | G 1/2 | PB 400 |
| 20 | S | G 3/4 | PB 400 |
| 25 | S | G 1 | PB 400 |
| 30 | S | G 1 1/4 | PB 400 |
| 38 | S | G 1 1/2 | PB 315 |
Contact us to get a quick quote for your requirement.
These couplings are widely utilized in industries that demand secure, leak-proof hydraulic connections. In the oil and gas sector, they are used in high-pressure pipelines, hydraulic control systems, and instrumentation networks. Petrochemical and chemical plants rely on them for process lines, fluid transfer units, and pressure-critical systems. They are also vital in power generation, marine engineering, and other industrial applications where reliability, mechanical strength, and corrosion resistance are essential. Their blend of durability, precision, and dependability guarantees safe and efficient operation in demanding hydraulic systems.
Hydraulic female stud couplings are essential components in hydraulic systems, commonly used to connect hoses and pipes securely. They enable quick and efficient fluid transfer in various applications, including construction, agriculture, and manufacturing. These couplings provide leak-free connections, ensuring system efficiency and safety under high-pressure conditions. They are also vital in hydraulic machinery, such as excavators and loaders, facilitating easy assembly and disassembly for maintenance. Additionally, their robust design ensures durability, making them suitable for harsh operating environments.
Please feel free to contact us if you need any further information or for enquiry.
