Hydraulic Weldable Nipple

Home > Hydraulic Weldable Nipple

Iyle Tube Fittings, located in South Africa, is a reliable manufacturer and supplier of **Hydraulic Weldable Nipples**. These fittings are crafted for high-strength, leak-proof, and durable connections in hydraulic and fluid transfer systems. They ensure secure, welded connections for hydraulic pipelines and instrumentation lines, maintaining system integrity even under high-pressure conditions. Made from top-notch materials like carbon steel, stainless steel, or alloy steel, these nipples boast excellent corrosion resistance, mechanical strength, and long-lasting reliability. Iyle Tube Fittings is committed to delivering precision-engineered, quality-assured products to various industries, including oil and gas, petrochemicals, chemical processing, power generation, and marine applications.

Hydraulic Weld Nipple Manufacturer in South Africa, Reducing Weld Nipple Supplier in Johannesburg, Cape Town, Weld nipple fittings Exporter in Germiston, Hydraulic Weld Nipple Supplier in South Africa, Reducing Weld Nipple Exporter in Durban, Weld nipple fittings Stockist in Gqeberha, Hydraulic Weld Nipple Distributor in Johannesburg, Cape Town

Hydraulic Weldable Nipples are made from high-strength alloys such as carbon steel, stainless steel (304/316), or specialty metals, offering superior tensile and yield strength, toughness, and ductility. They are designed to endure high-pressure situations, temperature changes, and mechanical stress, ensuring dependable and durable performance in hydraulic systems. Their sturdy construction makes them perfect for critical welded connections in fluid transfer applications.

Hydraulic Weldable Nipple Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
MATERIAL
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
BODY TYPE	BAR STOCK
ACCESSORIES	O-RING
O-RING & SEALS	NBR ( -35C TO 100 C ) VITON (-25C TO 200 C)
SURFACE	CARBON STEEL – BLACK PHOSPHATED
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)
MATERIAL DESIGNATOR	STAINLESS STEEL – ASTM A 276 , ASTM 182
	STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A.
	BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771.

Top Hydraulic Weldable Nipple Manufacturing Company in South Africa

At Iyle Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Weldable Nipple in South Africa, Cape Town. Our advanced manufacturing facilities, strategically positioned in the Cape Town, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

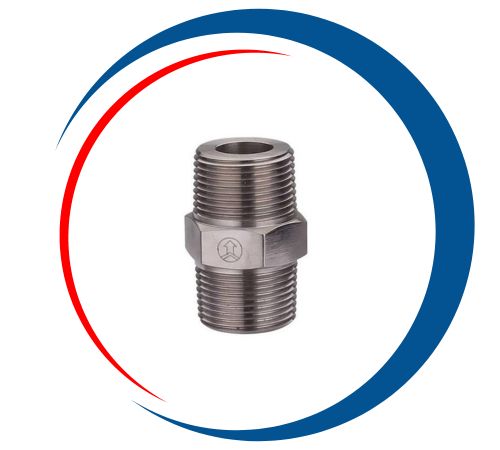

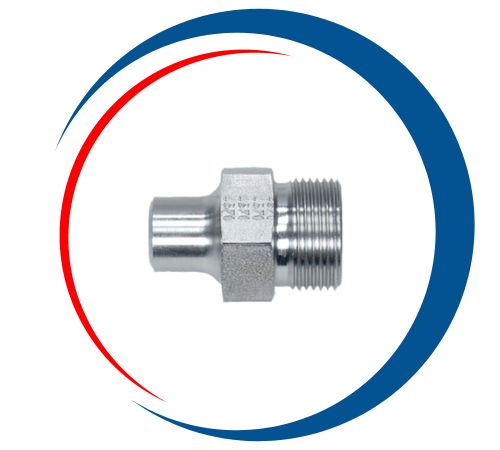

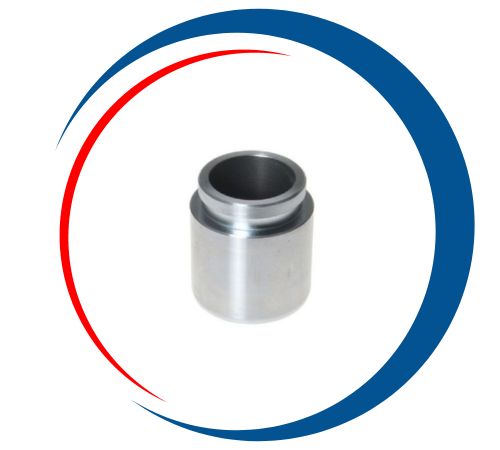

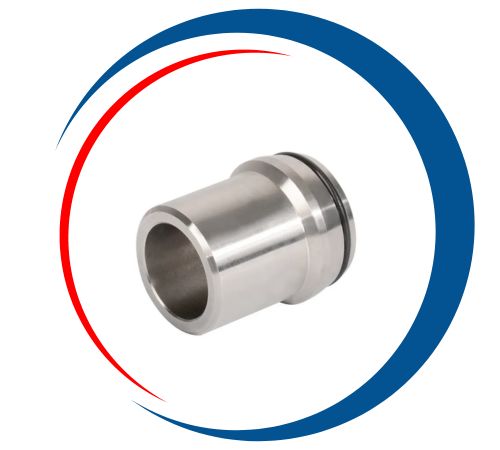

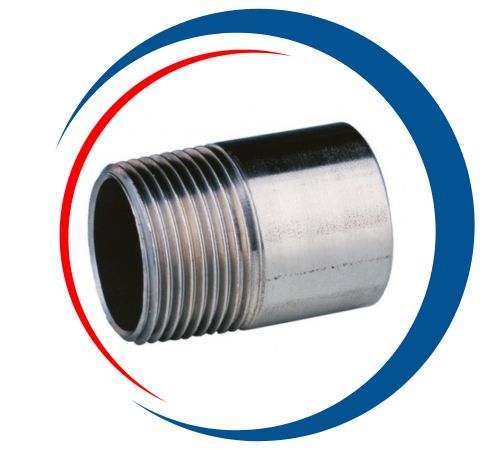

Types of Hydraulic Weldable Nipple

Hydraulic Weldable Nipple Dimensions

Outer Diameter (mm)	To Fit Tube Size (mm)	d1 (mm)	L (mm)	O-Ring (mm)	Max. Pressure (bar)
8	8 x 2	4	31	6 x 1.5	400
10	10 x 1.5	–	–	–	400
10	10 x 2	6	32.5	7.5 x 1.5	315
12	12 x 2.5	6	32.5	9 x 1.5	400
16	16 x 2	–	–	–	400
16	16 x 3	10	38.5	12 x 2	400
20	20 x 3	14	44.5	16.3 x 2.4	250
25	25 x 3	19	49.5	20.3 x 2.4	250
25	25 x 4	17	49.5	20.3 x 2.4	315
30	30 x 4	22	52	25.3 x 2.4	250
30	30 x 5	20	52	25.3 x 2.4	315
38	38 x 4	30	56.5	33.3 x 2.4	160
38	38 x 5	28	56.5	33.3 x 2.4	250
38	38 x 6	26	56.5	33.3 x 2.4	315

Hydraulic Reducing Weld Nipple Manufacturer in South Africa, Hydraulic Reducing Weldable Nipple Supplier in Germiston, Hydraulic Welding Nipple Exporter in Durban, Hydraulic Reducing Weld Nipple Exporter in South Africa, Hydraulic Reducing Weldable Nipple Stockist in South Africa,Cape Town, Hydraulic Welding Nipple Distributor in Johannesburg, Cape Town, Hydraulic Reducing Weldable Nipple Manufacturer in Gqeberha

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Hydraulic Weldable Nipple in South Africa, Cape Town

These Hydraulic Weldable Nipples find extensive use in industries that demand secure, leak-proof, and corrosion-resistant hydraulic connections. In the oil and gas sector, they are utilized in high-pressure pipelines, hydraulic control systems, and instrumentation networks. Petrochemical and chemical plants rely on them for process lines, fluid transfer units, and pressure-critical systems. They are also vital in power generation, marine engineering, and other industrial applications where durability, mechanical strength, and reliable welded connections are essential. Their blend of precision, corrosion resistance, and robustness guarantees safe and efficient operation in challenging hydraulic systems.

Hydraulic Weldable Nipple Uses

Hydraulic Weldable Nipples are primarily used to connect pipes, tubes, or hoses in hydraulic systems to ensure safe, waterproof, high-pressure connections They are commonly used in industrial equipment, construction equipment, and automotive systems though water transfer, hydroelectric transmission lines , and fuel pipelines. These nipples are ideal for applications that require strong, durable joints that withstand extreme pressures and temperature fluctuations. Its weldability makes it suitable for permanent installation in oil and gas pipelines, chemical plants, and other heavy-duty environments where reliability is essential.
